import vectorbtpro as vbt
from lightweight_charts import Panel, chart, PlotDFAccessor, PlotSRAccessor
t15data = None

if not hasattr(pd.Series, 'lw'):
    pd.api.extensions.register_series_accessor("lw")(PlotSRAccessor)

if not hasattr(pd.DataFrame, 'lw'):
    pd.api.extensions.register_dataframe_accessor("lw")(PlotDFAccessor)

DEBUGGING

vbt.pprint(pf.entry_trades) #pretty print of instance
vbt.pdir(pf.entry_trades) #available methods/properties
vbt.phelp(ollcov.run) #input/output attribnuttes of the method

prints which arguments are being passed to apply_func.

def apply_func(*args, **kwargs):
    for i, arg in enumerate(args):
        print("arg {}: {}".format(i, type(arg)))
    for k, v in kwargs.items():
        print("kwarg {}: {}".format(k, type(v)))
    raise NotImplementedError

RollCov = vbt.IF(
    class_name='RollCov',
    input_names=['ts1', 'ts2'],
    param_names=['w'],
    output_names=['rollcov'],
).with_apply_func(apply_func, select_params=False)

ollCov.run(ts1, ts2, [2, 3], some_arg="some_value")

FETCHING DATA

 #fetching from remote db
from lib.db import Connection
SYMBOL = "BAC"
SCHEMA = "ohlcv_1s" #time based 1s other options ohlcv_vol_200 (volume based ohlcv with resolution of 200), ohlcv_renko_20 (renko with 20 bricks size) ...
DB = "market_data"

con = Connection(db_name=DB, default_schema=SCHEMA, create_db=True)
basic_data = con.pull(symbols=[SYMBOL], schema=SCHEMA,start="2024-08-01", end="2024-08-08", tz_convert='America/New_York')


#Fetching from YAHOO
symbols = ["AAPL", "MSFT", "AMZN", "TSLA", "AMD", "NVDA", "SPY", "QQQ", "META", "GOOG"]
data = vbt.YFData.pull(symbols, start="2024-09-28", end="now", timeframe="1H", missing_columns="nan")


#Fetching from local cache
dir = DATA_DIR + "/notebooks/"
import os
files = [f for f in os.listdir(dir) if f.endswith(".parquet")]
print('\n'.join(map(str, files)))
file_name = "ohlcv_df-BAC-2024-10-03T09:30:00-2024-10-16T16:00:00-['4', '7', 'B', 'C', 'F', 'O', 'P', 'U', 'V', 'W', 'Z']-100.parquet"
ohlcv_df = pd.read_parquet(dir+file_name,engine='pyarrow')
basic_data = vbt.Data.from_data(vbt.symbol_dict({"BAC": ohlcv_df}), tz_convert=zoneNY)
basic_data.wrapper.index.normalize().nunique() #numdays

#Fetching Trades and Aggregating custom OHLCV
from ttools import load_data
#This is how to call LOAD function
symbol = ["SPY", "BAC"]
#datetime in zoneNY
day_start = datetime(2024, 1, 15, 9, 30, 0)
day_stop = datetime(2024, 10, 20, 16, 0, 0)
day_start = zoneNY.localize(day_start)
day_stop = zoneNY.localize(day_stop)

#requested AGG
resolution = 1 #12s bars
agg_type = AggType.OHLCV #other types AggType.OHLCV_VOL, AggType.OHLCV_DOL, AggType.OHLCV_RENKO
exclude_conditions = ['C','O','4','B','7','V','P','W','U','Z','F','9','M','6'] #None to defaults
minsize = 100 #min trade size to include
main_session_only = False
force_remote = False

data = load_data(symbol = symbol,
                     agg_type = agg_type,
                     resolution = resolution,
                     start_date = day_start,
                     end_date = day_stop,
                     #exclude_conditions = None,
                     minsize = minsize,
                     main_session_only = main_session_only,
                     force_remote = force_remote,
                     return_vbt = True, #returns vbt object
                     verbose = True
                     )

REINDEX to main session

Get trading days main sessions from pandas_market_calendars and reindex fetched data to main session only.

import vectorbtpro as vbt

# Start and end dates to use across both the calendar and data fetch
start=data.index[0].to_pydatetime()
end=tata.index[-1].to_pydatetime()
timeframe="1m"

import pandas_market_calendars as mcal
# Get the NYSE calendar
nyse = mcal.get_calendar("NYSE")
# Get the market hours data
market_hours = nyse.schedule(start_date=start, end_date=end, tz=nyse.tz)
#market_hours = market_hours.tz_localize(nyse.tz)
# Create a DatetimeIndex at our desired frequency for that schedule. Because the calendar hands back the end of
# the window, you need to subtract that size timeframe to get back to the start
market_klines = mcal.date_range(market_hours, frequency=timeframe) - pd.Timedelta(timeframe)

testData = vbt.YFData.fetch(['MSFT'], start=start, end=end, timeframe=timeframe, tz_convert="US/Eastern")
# Finally, take our DatetimeIndex and use that to pull just the data we're interested in (and ensuring we have rows
# for any empty klines in there, which helps for some time based algorithms that need to have time not exist outside
# of market hours)
testData = testData.transform(lambda x: x.reindex(market_klines))

Smart indexing

signal.vbt.xloc["04-26-2024":"04-29-2024"].get() #pdseries or df timeindex
signal.vbt.xloc[("BAC", "04-26-2024"):("BAC","04-29-2024")].get() #multiindex
entries.vbt.xloc["04-16-2024"].get() #one day
entries.vbt.xloc[slice("2024-08-01","2024-08-03")].obj.info()
data.xloc[slice("9:30","10:00")] #targeting only morning rush

Data manipulation

#add/rename/delete symbols
s12_data = s12_data.rename_symbols("BAC", "BAC-LONG")
s12_data = s12_data.add_symbol("BAC-SHORT", s12_data.data["BAC-LONG"])
s12_adata.symbols
s12_data = s12_data.remove_symbols(["BAC-SHORT"])

DISCOVERY

#get parameters of method
vbt.IF.list_locations() #lists categories
vbt.IF.list_indicators(pattern="vbt") #all in category vbt
vbt.IF.list_indicators("*sma")
vbt.phelp(vbt.indicator("talib:MOM").run)

DATA/WRAPPER

Available methods for data

Main data container (servees as a wrapper for symbol oriented or feature oriented data)

data.transform()
data.dropna()
data.feature_oriented vs data.symbol_oriented #returns True/False if cols are features or symbols
data.data #dictionary either feature oriented or
data.ohlcv #OHLCV mixin filters only ohlcv feature and offers methods http://5.161.179.223:8000/vbt-doc/api/data/base/index.html#vectorbtpro.data.base.OHLCDataMixin
data.base #base mixin - implicit offers functions wrapper methods  http://5.161.179.223:8000/vbt-doc/api/data/base/index.html#vectorbtpro.data.base.BaseDataMixin
    - data.symbol_wrapper
    - data.feature_wrapper
    - data.features


show(t1data.data["BAC"])

#display returns on top of ohlcv
t1data.ohlcv.data["BAC"].lw.plot(left=[(t1data.returns, "returns")], precision=4)

create WRAPPER manually

wrapper methods

#create wrapper from existing objects
wrapper = data.symbol_wrapper # one column for each symbol
wrapper = data.get_symbol_wrapper() # symbol - level, one column for each symbol  (BAC a pod tim series)
wrapper = data.get_feature_wrapper() #feature level, one column for each feature (open,high...)
wrapper = df.vbt.wrapper

#Create an empty array with the same shape, index, and columns as in another array
new_float_df = wrapper.fill(np.nan)
new_bool_df = wrapper.fill(False)
new_int_df = wrapper.fill(-1)

#display df/series
from itables import show
show(t1data.close)

RESAMPLING

config

from vectorbtpro.utils.config import merge_dicts, Config, HybridConfig
from vectorbtpro import _typing as tp
from vectorbtpro.generic import nb as generic_nb

_feature_config: tp.ClassVar[Config] = HybridConfig(
    {
        "buyvolume": dict(
            resample_func=lambda self, obj, resampler: obj.vbt.resample_apply(
                resampler,
                generic_nb.sum_reduce_nb,
            )
        ),
        "sellvolume": dict(
            resample_func=lambda self, obj, resampler: obj.vbt.resample_apply(
                resampler,
                generic_nb.sum_reduce_nb,
            )
        ),
        "trades": dict(
            resample_func=lambda self, obj, resampler: obj.vbt.resample_apply(
                resampler,
                generic_nb.sum_reduce_nb,
            )
        )
    }
)

basic_data._feature_config = _feature_config

#1s to 1T
t1data = basic_data[['open', 'high', 'low', 'close', 'volume','vwap','buyvolume','trades','sellvolume']].resample("1T")
t1data = t1data.transform(lambda df: df.between_time('09:30', '16:00').dropna())

#using resampler (with more control over target index)
resampler_s = vbt.Resampler(target_data.index, source_data.index, source_freq="1T", target_freq="1s")
basic_data.resample(resampler_s)

REALIGN

REALIGN method - runs on data object (OHLCV) - (open feature realigns leftbound, rest of features rightboud) .resample("1T").first().ffill()

ffill=True = same frequency as t1data.index
ffill=False = keeps original frequency but moved to where data are available ie. instead of 15:30 to 15:44 for 15T bar
t15data_realigned = t15data.realign(t1data.index, ffill=True, freq="1T") #freq - target frequency

REALIGN_CLOSING accessors

t15data_realigned_close = t15data.close.vbt.realign_closing(t1data.index, ffill=True, freq="1T")
t15data_realigned_open = t15data.open.vbt.realign_open(t1data.index, ffill=True, freq="1T")

#realign_closing accessor just calls #return self.realign(*args, source_rbound=False, target_rbound=False, **kwargs) #realign opening #return self.realign(*args, source_rbound=True, target_rbound=True, **kwargs)

#using RESAMPLER #or resampler_s = vbt.Resampler(t15data.index, t1data.index, source_freq="1T", target_freq="1s") t15close_realigned_with_resampler = t1data.data["BAC"].realign_closing(resampler_s)

SIGNALS

Comparing

dvla = np.round(div_vwap_lin_angle.real,4) #ROUNDING to 4 decimals

long_entries = tts.isrisingc(dvla,3).vbt & div_vwap_cum.div_below(0) #strictly rising for 3 bars
short_entries = tts.isfalling(dvla,3).vbt & div_vwap_cum.div_above(0) #strictly falling for 3 bars
long_entries = tts.isrising(dvla,3)#rising for 3 bars including equal values
short_entries = tts.isfalling(dvla,3)#falling for 3 bars including equal values

cond1 = data.get("Low") < bb.lowerband
#comparing with previous value
cond2 = bandwidth > bandwidth.shift(1)
#comparing with value week ago
cond2 = bandwidth > bandwidth.vbt.ago("7d")
mask = cond1 & cond2
mask.sum()

#creating
bandwidth = (bb.upperband - bb.lowerband) / bb.middleband
mask = bandwidth.vbt > vbt.Param([0.15, 0.3], name="threshold")  #broadcasts and create combinations (for scalar params only)

#same but for arrays
mask = bandwidth.vbt.combine(
    [0.15, 0.3],  #values elements (scalars or array)
    combine_func=np.greater,
    keys=pd.Index([0.15, 0.3], name="threshold")  #keys for the multiindex
)
mask.sum()

GENERATE SIGNALS IRERATIVELY (numba)

Used for 1D. For multiple symbol create own indicator instead.

@njit
def generate_mask_1d_nb(  #required arrays as inputs
    high, low,
    uband, mband, lband,
    cond2_th, cond4_th
):
    out = np.full(high.shape, False)

    for i in range(high.shape[0]):

        bandwidth = (uband[i] - lband[i]) / mband[i]
        cond1 = low[i] < lband[i]
        cond2 = bandwidth > cond2_th
        cond3 = high[i] > uband[i]
        cond4 = bandwidth < cond4_th
        signal = (cond1 and cond2) or (cond3 and cond4)
        out[i] = signal

    return out

mask = generate_mask_1d_nb(
    data.get("High")["BTCUSDT"].values,
    data.get("Low")["BTCUSDT"].values,
    bb.upperband["BTCUSDT"].values,
    bb.middleband["BTCUSDT"].values,
    bb.lowerband["BTCUSDT"].values,
    0.30,
    0.15
)
symbol_wrapper = data.get_symbol_wrapper()
mask = symbol_wrapper["BTCUSDT"].wrap(mask)
mask.sum()

or create extra numba function to iterate over columns

@njit
def generate_mask_nb(
    high, low,
    uband, mband, lband,
    cond2_th, cond4_th
):
    out = np.empty(high.shape, dtype=np.bool_)

    for col in range(high.shape[1]):
        out[:, col] = generate_mask_1d_nb(
            high[:, col], low[:, col],
            uband[:, col], mband[:, col], lband[:, col],
            cond2_th, cond4_th
        )

    return out

mask = generate_mask_nb(
    vbt.to_2d_array(data.get("High")),
    vbt.to_2d_array(data.get("Low")),
    vbt.to_2d_array(bb.upperband),
    vbt.to_2d_array(bb.middleband),
    vbt.to_2d_array(bb.lowerband),
    0.30,
    0.15
)
mask = symbol_wrapper.wrap(mask)
mask.sum()

or as indicators

Works on columns.

MaskGenerator = vbt.IF(
    input_names=["high", "low", "uband", "mband", "lband"],
    param_names=["cond2_th", "cond4_th"],
    output_names=["mask"]
).with_apply_func(generate_mask_1d_nb, takes_1d=True)
mask_generator = MaskGenerator.run(
    data.get("High"),
    data.get("Low"),
    bb.upperband,
    bb.middleband,
    bb.lowerband,
    [0.3, 0.4],
    [0.1, 0.2],
    param_product=True
)
mask_generator.mask.sum()

ENTRIES/EXITS time based

#create entries/exits based on open of first symbol
entries = pd.DataFrame.vbt.signals.empty_like(data.open.iloc[:,0])
exits = pd.DataFrame.vbt.signals.empty_like(entries)

#OR create entries/exits based on symbol level if needed (for each columns)
symbol_wrapper = data.get_symbol_wrapper()
entries = symbol_wrapper.fill(False)
exits = symbol_wrapper.fill(False)

entries.vbt.set(
    True,
    every="W-MON",
    at_time="00:00:00",
    indexer_method="bfill",  # this time or after
    inplace=True
)
exits.vbt.set(
    True,
    every="W-MON",
    at_time="23:59:59",
    indexer_method="ffill",  # this time or before
    inplace=True
)

STOPS

doc from_signal

  • StopExitPrice (Which price to use when exiting a position upon a stop signal?)
  • StopEntryPrice (Which price to use as an initial stop price?)

price = close.vbt.wrapper.fill() price[entries] = entry_price price[exits] = exit_price

OHLCSTX Module

  • exit signal generator based on price and stop values doc

Entry Window and Forced Exit Window

Applying entry window range (denoted by minutes from the session start) to entries and applying forced exit window to exits.

create_mask_from_window with param use_cal=True (default) uses market calendar data for each day to denote session start and end. When disabled it uses just fixed 9:30-16:00 for each day.

from ttools import create_mask_from_window

entry_window_opens = 3 #in minutes from start of the market
entry_window_closes = 388
forced_exit_start = 387
forced_exit_end = 390

#create mask based on main session that day
entry_window_opened = create_mask_from_window(entries, entry_window_opens, entry_window_closes, use_cal=True)
#limit entries to the window
entries = entries & entry_window_opened

#create forced exits mask
forced_exits_window = create_mask_from_window(exits, forced_exit_start, forced_exit_end, use_cal=True)

#add forced_exits to exits
exits = exits | forced_exits_window

END OF DAY EXITS

Another way of eod exits according to number of bars at the end of the session. Assuming the last rows each day represents end of the market.

sr = t1data.data["BAC"]
last_n_daily_rows = sr.groupby(sr.index.date).tail(4) #or N last rows
second_last_daily_row = sr.groupby(sr.index.date).nth(-2) #or Nth last row
second_last_two_rows = sr.groupby(sr.index.date).apply(lambda x: x.iloc[-3:-1]).droplevel(0) #or any slice of rows
#create exit array
exits = t1data.get_symbol_wrapper().fill(False)
exits.loc[last_n_daily_rows.index] = True
#visualize
t1data.ohlcv.data["BAC"].lw.plot(right=[(t1data.close,"close",exits)], size="s")

#which is ALTERNATIVE to
exits = create_mask_from_window(t1data.close, 387, 390, use_cal=False)
t1data.ohlcv.data["BAC"].lw.plot(right=[(t1data.close,"close",exits)], size="s")

REGULAR EXITS

Time based.

#REGULAR EXITS -EVERY HOUR/D/WEEK exits
exits.vbt.set(
    True,
    every="H" # "min" "2min" "2H" "W-MON"+at time "D"+time
    #at_time="23:59:59",
    indexer_method="ffill",  # this time or before
    inplace=True
)

DF/SR ACCESSORS

Generic

For common taks (docs)

  • rolling_apply - runs custom function over a rolling window of a fixed size (number of bars or frequency)

  • expanding_apply - runs custome function over expanding the window from the start of the data to the current poin

from numba import njit
mean_nb = njit(lambda a: np.nanmean(a))
hourly_anchored_expanding_mean = t1data.close.vbt.rolling_apply("1H", mean_nb) #ROLLING to FREQENCY or with fixed windows rolling_apply(10,mean_nb)
t1data.ohlcv.data["BAC"].lw.plot(right=[(t1data.close,"close"),(hourly_anchored_expanding_mean, "hourly_anchored_expanding_mean")], size="s")
#NOTE for anchored "1D" frequency - it measures timedelta that means requires 1 day between reseting (16:00 end of market, 9:30 start - not a full day, so it is enOugh to set 7H)

#HEATMAP OVERLAY
df['a'].vbt.overlay_with_heatmap(df['b']).show()

SIGNAL ACCESSORS

RANKING - partitioning

#pos_rank -1 when False, 0, 1 ... for consecutive Trues, allow_gaps defautlne False
# sample_mask = pd.Series([True, True, False, True, True])
ranked = sample_mask.vbt.signals.pos_rank()
ranked == 1 #select each second signal in each partition
ranked = sample_mask.vbt.signals.pos_rank(allow_gaps=True)
(ranked > -1) & (ranked % 2 == 1) #Select each second signal globally

entries.vbt.signals.first() #selects only first entries in each group
entries.vbt.signals.from_nth(n) # pos_rank >= n in each group, all from Nth

#AFTER - with variants _after which resets partition each reset array
#maximum number of exit signals after each entry signal
exits.vbt.signals.pos_rank_after(entries, reset_wait=0).max() + 1 #Count is the maximum rank plus one since ranks start with zero. We also assume that an entry signal comes before an exit signal if both are at the same timestamp by passing reset_wait=0.

entries.vbt.signals.total_partitions


#partition_pos_rank - all members of each partition have the same rank
ranked = sample_mask.vbt.signals.partition_pos_rank(allow_gaps=True) #0,0,-1,1,1
ranked == 1 # the whole second partition

Base Accessors

exits.vbt.set(
    True,
    every="W-MON",
    at_time="23:59:59",
    indexer_method="ffill",  # this time or before
    inplace=True
)

Stoploss/Takeprofit

doc StopOrders

SL - ATR based

atr = data.run("atr").atr
pf = vbt.Portfolio.from_signals(
    data,
    entries=entries,
    sl_stop=atr / sub_data.close
)

EXIT after time

using from signals

f = vbt.PF.from_signals(..., td_stop="7 days")
pf = vbt.PF.from_signals(..., td_stop=pd.Timedelta(days=7))
pf = vbt.PF.from_signals(..., td_stop=td_arr)
#EXIT at time
pf = vbt.PF.from_signals(..., dt_stop="16:00")  #exit at 16 and later
pf = vbt.PF.from_signals(..., dt_stop=datetime.time(16, 0))
pf = vbt.PF.from_signals(  #exit last bar before
    ...,
    dt_stop="16:00",
    arg_config=dict(dt_stop=dict(last_before=True))
)

CALLBACKS -

  • a signal function (signal_func_nb)
    • can dynamically generate signals (True, True, False,False)
    • runs at beginning of bar
  • an adjustment function (adjust_func_nb) - doc
    • runs only if signal function above was not provided, but entry,exit arrays
    • runs before default signal function ls_signal_func_nb
      • can change pending limit orders etc.
  • a post-signal function (post_signal_func_nb)
  • post-segment function (post_segment_func_nb)

all of them are accessing SignalContext (c) as named tuple SignalContaxt (contains various metrics) such as:

  • last_limit_info - 1D with latest limit order per column
  • order_counts
  • last_return ...

"""

MEMORY

save an information piece at one timestamp and re-use at a later timestamp when using callbacks memory

Usecases:

Portfolio

group_by=True to put all columns to the same group and cash_sharing=True to share capital among them

from signals

pf = vbt.Portfolio.from_signals(
    close=s12_data.close,
    entries=long_entries_cln,
    exits=long_exits,
    short_entries=short_entries_cln,
    short_exits=short_exits,
    size=1,
    size_type=vbt.pf_enums.SizeType.Amount # Value, Percent, TargetAmount
    price="nextopen" #where the fill is happening. Default is "close" of current bar, can be also  multiparameter vbt.Param(["close", "nextopen"])
    sl_stop=0.3,
    tp_stop = 0.4,
    delta_format = vbt.pf_enums.DeltaFormat.Percent100, #(Absolute, Percent, Percent100, Target)
    fees=0.0167/100,
    freq="12s") #sl_stop=sl_stop, tp_stop = sl_stop,, tsl_stop

SizeType enums

DeltaFormat enums

Other PF enums

CALLBACKS

Callbacks functions can be used to place/alter entries/exits and various other things dynamically based on simulation status. All of them contain SignalContext and also can include custom Memory.

Importan SignalContact attributes:

  • c.i - current index
  • c.index - time index numpy
  • c.last_pos_info[c.col] - named tuple of last position info {'names': ['id', 'col', 'size', 'entry_order_id', 'entry_idx', 'entry_price', 'entry_fees', 'exit_order_id', 'exit_idx', 'exit_price', 'exit_fees', 'pnl', 'return', 'direction', 'status', 'parent_id']

Callback functions:

  • signal_func_nb - place/alter entries/exits
  • adjust_sl_func_nb - adjust SL at each time stamp
  • adjust_func_nb - adjust size
  • post_segment_func_nb

More on callbacks in cookbook.

For exit dependent entries, the entries can be preprocessed in signal_func_nb see callbacks in cookbok or signal functionin doc

@njit
def signal_func_nb(c, entries, exits, short_entries, short_exits, cooldown_time, cooldown_bars):
    entry = vbt.pf_nb.select_nb(c, entries) #get current value
    exit = vbt.pf_nb.select_nb(c, exits)
    short_entry = vbt.pf_nb.select_nb(c, short_entries)
    short_exit = vbt.pf_nb.select_nb(c, short_exits)
    if not vbt.pf_nb.in_position_nb(c): # short for c.last_position == 0
        if vbt.pf_nb.has_orders_nb(c):
            if c.last_pos_info[c.col]["pnl"] < 0:  #current index is c.i
                last_exit_idx = c.last_pos_info[c.col]["exit_idx"] # exit index from last_pos_info named tuple
                if cooldown_time is not None and c.index[c.i] - c.index[last_exit_idx] < cooldown_time:
                    return False, exit, False, short_exit #disable entry
                elif cooldown_bars is not None and last_exit_idx + cooldown_bars > c.i:
                    return False, exit, False, short_exit #disable entry
    return entry, exit, short_entry, short_exit

cooldown_time = vbt.dt.to_ns(vbt.timedelta("1m"))
cooldown_bars = 3

pf = vbt.Portfolio.from_signals(
    close=s12_data.close,
    bm_close=data.data["SPY"].close, #explicit benchmark used in pf, ie. pf.plot_cum_returns().show()
    entries=long_entries_cln,
    exits=long_exits,
    short_entries=short_entries_cln,
    short_exits=short_exits,
    signal_func_nb="signal_func_nb.py",
    signal_args=(
        vbt.Rep("entries"),
        vbt.Rep("exits"),
        vbt.Rep("short_entries"),
        vbt.Rep("short_exits"),
        cooldown_time, # cooldown in timedelta in ns after exit
        cooldown_bars  #cooldown in number of bars after exit
    ),
    sl_stop=0.3,
    tp_stop = 0.4,
    delta_format = vbt.pf_enums.DeltaFormat.Percent100, #(Absolute, Percent, Percent100, Target)
    fees=0.0167/100,
    freq="12s",
    #staticized=True
    #jitted=False
    ) #sl_stop=sl_stop, tp_stop = sl_stop,, tsl_stop

Tips:

  • To avoid waiting for the compilation, remove the @njit decorator from signal_func_nb and pass jitted=False to from_signals in order to disable Numba

Access running total return from sim

create an empty array for cumulative returns and populate it inside the post_segment_func_nb callback. The same array accessed by other callbacks can be used to get the total return at any time step.

@njit
def adjust_func_nb(c, cum_return):
    if c.cash_sharing:
        total_return = cum_return[c.group] - 1
    else:
        total_return = cum_return[c.col] - 1
    ...

@njit
def post_segment_func_nb(c, cum_return):
    if c.cash_sharing:
        cum_return[c.group] *= 1 + c.last_return[c.group]
    else:
        for col in range(c.from_col, c.to_col):
            cum_return[col] *= 1 + c.last_return[col]

cum_return = None
def init_cum_return(wrapper):
    global cum_return
    if cum_return is None:
        cum_return = np.full(wrapper.shape_2d[1], 1.0)
    return cum_return

pf = vbt.PF.from_signals(
    ...,
    adjust_func_nb=adjust_func_nb,
    adjust_args=(vbt.RepFunc(init_cum_return),),
    post_segment_func_nb=post_segment_func_nb,
    post_segment_args=(vbt.RepFunc(init_cum_return),),
)

Staticization

Callbacks make function uncacheable, to overcome that

  • define the callback in external file signal_func_nb.py
@njit
def signal_func_nb(c, fast_sma, slow_sma):
    long = vbt.pf_nb.iter_crossed_above_nb(c, fast_sma, slow_sma)
    short = vbt.pf_nb.iter_crossed_below_nb(c, fast_sma, slow_sma)
    return long, False, short, False

and then use use staticized=True

data = vbt.YFData.pull("BTC-USD")
pf = vbt.PF.from_signals(
    data,
    signal_func_nb="signal_func_nb.py",
    signal_args=(vbt.Rep("fast_sma"), vbt.Rep("slow_sma")),
    broadcast_named_args=dict(
        fast_sma=data.run("sma", 20, hide_params=True, unpack=True),
        slow_sma=data.run("sma", 50, hide_params=True, unpack=True)
    ),
    staticized=True
)

Grouping

Grouping in signal function.

Portfolio analysis

Portfolio base doc

pf.orders.readable
pf.entry_trades.readable
pf.exit_trades.readable
pf.trades.readable
pf.positions.readable
pf.trade_history #human readable df expanding trades with metrics

dd = pf.get_drawdowns().records_readable
dd[dd["Status"] == "Active"] #Recovered
pf.metrics #get available metrics and its short names&function

#trades
vbt.pdir(pf.trades) # available methods/properties

#orders
pf.orders.side_buy.count() # pf.order.attribute_value.COUNT()
pf.orders.stats(group_by=True)

#daily returns
pf.daily_returns.sort_values([(2, 'BAC')], ascending=True) #sorting values in levels
pf.daily_returns.sort_values(pf.daily_returns.columns[0], ascending=True) #same with first level
pf.daily_returns.cumsum()

pf.trades analysis

pf.trades.plot() doc - various options.

fig = pf.trades.plot()
fig.auto_rangebreaks()
fig.show()

df = pf.trades.readable

df["Direction"].value_counts() #count of trades for each Direction
df.groupby("Direction")["PnL"].sum() #sum of pnl for each Direction (Short vs Long) .vbt.barplot() -to plot

#daily PnL
df.groupby(df['Exit Index'].dt.date)['PnL'].sum().sort_index(ascending=False) #daily PnL

#daily PnL for each Direction
df.groupby([df['Exit Index'].dt.date, 'Direction'])['PnL'].sum().sort_index(ascending=False) #daily PnL for each Direction
#same but unstack, wehere long/short values become columns - for better charting
df = df.groupby([df['Exit Index'].dt.date, 'Direction'])['PnL'].sum().sort_index(ascending=False).unstack()
#df.vbt.barplot() or
df.plot(kind="bar", stacked=True)


#hourly PnL for each Direction, by Exit

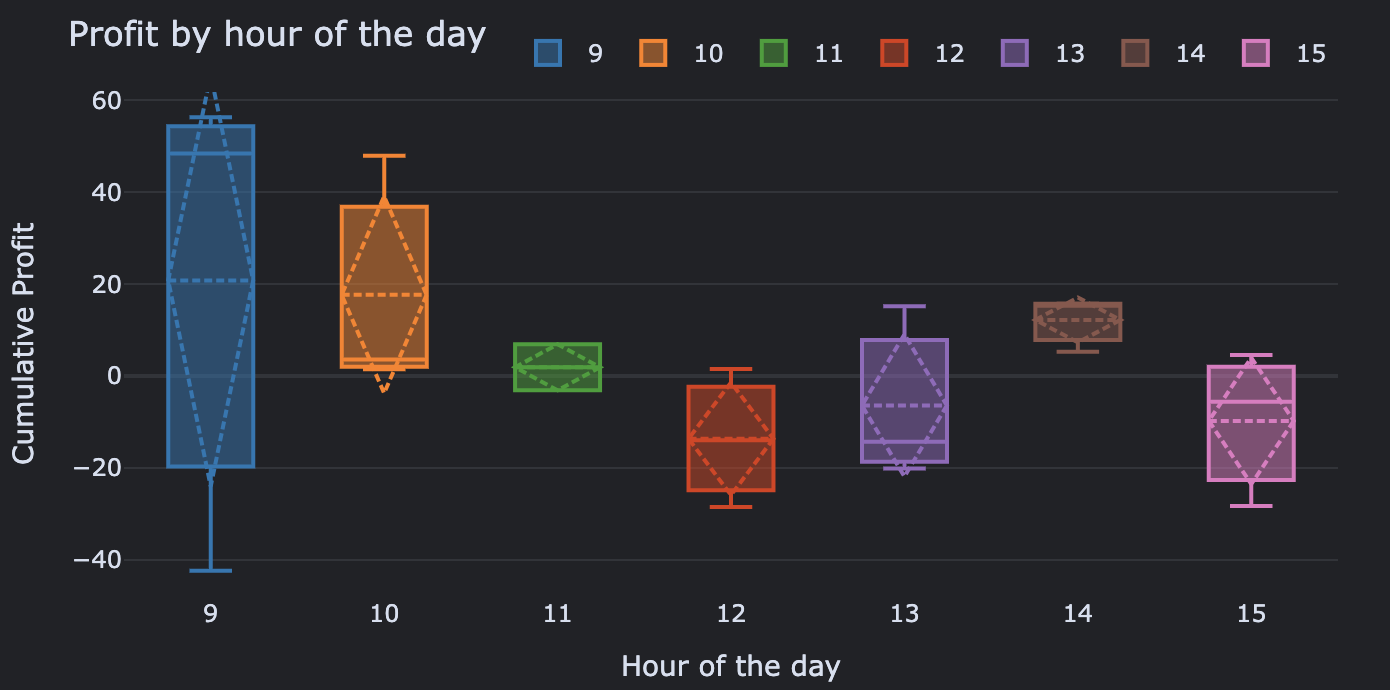

df = df.groupby([df['Exit Index'].dt.hour, 'Direction'])['PnL'].sum().sort_index(ascending=False).unstack()
#df.vbt.barplot()
df.plot(kind="bar", stacked=True)

#PnL by Day of the Week and Direction
# Group by day of the week and direction, then sum PnL
pnl_by_day_and_direction_week = df.groupby([df['Exit Index'].dt.day_name(), 'Direction'])['PnL'].sum().unstack()
fig = pnl_by_day_and_direction_week.vbt.barplot()
fig.update_layout(
    barmode='stack',  # Stack/group/overlay/relative the bars
    title='Profit by Day of the Week and Direction',
    xaxis_title='Day of the Week',
    yaxis_title='Cumulative Profit'
)

PnL by hour of the day (BOXPLOT)

alt text

a = df.groupby([df['Exit Index'].dt.day_name(), df['Exit Index'].dt.hour])['PnL'].sum().unstack()
fig = a.vbt.boxplot()
fig.update_layout(
    #barmode='stack',  # Stack/group/overlay/relative the bars
    title='Profit by hour of the day',
    xaxis_title='Hour of the day',
    yaxis_title='Cumulative Profit'
)

##Profit/Loss (PnL) vs. Trade Duration
# Calculate trade duration in minutes
df['Trade Duration'] = (df['Exit Index'] - df['Entry Index']).dt.total_seconds() / 60

# Scatter plot of PnL vs Trade Duration
plt.style.use('dark_background')
colors = {'Short': 'lightcyan', 'Long': 'yellow'}
plt.scatter(df['Trade Duration'], df['PnL'], c=df['Direction'].map(colors))

# Adding labels and title
plt.title('Trade Duration vs. Profit/Loss')
plt.xlabel('Duration (Minutes)')
plt.ylabel('Profit/Loss')

# Create a legend
handles = [plt.Line2D([0], [0], marker='o', color='w', label='Short', markerfacecolor='lightcyan', markersize=10),
           plt.Line2D([0], [0], marker='o', color='w', label='Long', markerfacecolor='yellow', markersize=10)]
plt.legend(title='Type', handles=handles)

plt.tight_layout()
plt.show()

##Cumulative profits vs benchmark
pf.plot_cum_returns().show()

PF resampling

monthly_returns = pf.returns_acc.resample("M").get()
daily_returns = pf.resample("D").returns #alternative
fig = monthly_returns.vbt.boxplot() #box plot of monthly returns
fig = monthly_returns.vbt.heatmap()   #heatmap of time vs  monthly returns
fig = monthly_returns.vbt.ts_heatmap() #heatmap of  returns vs time

PF Plotting

pf.plot_trade_signals().show() #plot long short entries/exits
pf.plot_cum_returns().show() #cum returns vs benchmark

##whether returns are distirbuted normally
pf.returns.vbt.qqplot()

#TRADES
pf.trades.plot_mae_returns().show()#MAE/MFE - identify max loss/profit during the trade
pf.trades.plot_expanding_mfe_returns().show() #expanding mea/mfe returns

Plot Edge ratio pf.trades.plot_running_edge_ratio()

Entries/exits visual analysis

#display entry exits for visual analysis
import ttools as tts
trade_entries, trade_exits = tts.trades2entries_exits(pf) #helper to extract info from trades and orders with texts to markers (notext=True can be used)

Panel(
    ohlcv=(s12_data.ohlcv.data["BAC"],),
    right=[(s12_data.close, "close", trade_entries, trade_exits)],
    middle1=[(pf.returns.cumsum(), "returns")],
    ).chart(precision=4)

#or alternative display just markers with no text
trade_entries = pd.Series(index=pf.trades.readable["Entry Index"], dtype=bool, data=True)
trade_exits = pd.Series(index=pf.trades.readable["Exit Index"], dtype=bool, data=True)
#then call Panel same as above

Configuration

Changing year freq for stocks

vbt.settings.returns.year_freq = pd.Timedelta(hours=6.5) * 252

Optimalization

Param configuration

tp_stop = vbt.Param(tp_stop, condition="tp_stop > sl_stop") #conditional hyper parameters

tp_stop = vbt.Param(tp_stop, condition="tp_stop > sl_stop") #conditional hyper parameters

Pipeline

bt.parameterized(merge_func="concat")
def sma_crossover_perf(data, fast_window, slow_window):
    fast_sma = data.run("sma", fast_window, short_name="fast_sma")
    slow_sma = data.run("sma", slow_window, short_name="slow_sma")
    entries = fast_sma.real_crossed_above(slow_sma)
    exits = fast_sma.real_crossed_below(slow_sma)
    pf = vbt.Portfolio.from_signals(
        data, entries, exits, direction="both")
    return pf.sharpe_ratio

#Let's test a grid of fast_window and slow_window combinations on one year of that data:

perf = sma_crossover_perf(
    data["2020":"2020"],
    vbt.Param(np.arange(5, 50), condition="x < slow_window"),
    vbt.Param(np.arange(5, 50)),
    _execute_kwargs=dict(
        show_progress=True,
        clear_cache=50,
        collect_garbage=50
    )
)
perf

INDICATORS DEV

#REGISTER CUSTOM INDICATOR
vbt.IndicatorFactory.register_custom_indicator(
    SupportResistance,
    name="SUPPRES",
    location=None,
    if_exists='raise'
)

#RUN INDICATOR on DATA WRAPPER
cdlbreakaway = s1data.run(vbt.indicator("talib:CDLHAMMER"), skipna=True, timeframe=["12s"])

#FROM EXPRESSION http://5.161.179.223:8000/vbt-doc/api/indicators/factory/#vectorbtpro.indicators.factory.IndicatorFactory.from_expr
WMA = vbt.IF(
    class_name='WMA',
    input_names=['close'],
    param_names=['window'],
    output_names=['wma']
).from_expr("wm_mean_nb(close, window)")

wma = WMA.run(t1data.close, window=10)
wma.wma

Custom ind

#simple
from numba import jit
@jit
def apply_func(high, low, close):
    return (high + low + close + close) / 4

HLCC4 = vbt.IF(
    class_name='hlcc4',
    input_names=['high', 'low', 'close'],
    output_names=['out']
).with_apply_func(
    apply_func,
    timeperiod=10, #single default
    high=vbt.Ref('close')) #default from another input)

ind = HLCC4.run(s12_data.high, s12_data.low, s12_data.close)

#1D apply function
import talib

def apply_func_1d(close, timeperiod):
    return talib.SMA(close.astype(np.double), timeperiod)

SMA = vbt.IF(
    input_names=['ts'],
    param_names=['timeperiod'],
    output_names=['sma']
).with_apply_func(apply_func_1d, takes_1d=True)

sma = SMA.run(ts, [3, 4])
sma.sma

#with grouping and keep_pd (inputs are pd.series)
def apply_func(ts, group_by):
    return ts.vbt.demean(group_by=group_by)

Demeaner = vbt.IF(
    input_names=['ts'],
    param_names=['group_by'],
    output_names=['out']
).with_apply_func(apply_func, keep_pd=True) #if takes_1D it sends pd.series, otherwise df with symbol as columns

ts_wide = pd.DataFrame({
    'a': [1, 2, 3, 4, 5],
    'b': [5, 4, 3, 2, 1],
    'c': [3, 2, 1, 2, 3],
    'd': [1, 2, 3, 2, 1]
}, index=generate_index(5))
demeaner = Demeaner.run(ts_wide, group_by=[(0, 0, 1, 1), True])
demeaner.out

register custom ind

indicator registration

vbt.IF.register_custom_indicator(sma_indicator) #name=classname
vbt.IF.register_custom_indicator(sma_indicator, "rolling:SMA")

vbt.IF.deregister_custom_indicator("rolling:SMA")

VWAP anchored example

import numpy as np
from vectorbtpro import _typing as tp
from vectorbtpro.base.wrapping import ArrayWrapper
from vectorbtpro.utils.template import RepFunc

def substitute_anchor(wrapper: ArrayWrapper, anchor: tp.Optional[tp.FrequencyLike]) -> tp.Array1d:
    """Substitute reset frequency by group lens. It is array of number of elements of each group."""
    if anchor is None:
        return np.array([wrapper.shape[0]])
    return wrapper.get_index_grouper(anchor).get_group_lens()

@jit(nopython=True)
def vwap_cum(high, low, close, volume, group_lens):
    #anchor based grouping - prepare group indexes
    group_end_idxs = np.cumsum(group_lens)
    group_start_idxs = group_end_idxs - group_lens

    #prepare output
    out = np.full(volume.shape, np.nan, dtype=np.float_)

    hlcc4 = (high + low + close + close) / 4

    #iterate over groups
    for group in range(len(group_lens)):
        from_i = group_start_idxs[group]
        to_i = group_end_idxs[group]
        nom_cumsum = 0
        denum_cumsum = 0
        #for each group do this (it is just np.cumsum(hlcc4 * volume) / np.sum(volume) iteratively)
        for i in range(from_i, to_i):
            nom_cumsum += volume[i] * hlcc4[i]
            denum_cumsum += volume[i]
            if denum_cumsum == 0:
                out[i] = np.nan
            else:
                out[i] = nom_cumsum / denum_cumsum
    return out

vwap_ind = vbt.IF(
    class_name='CUVWAP',
    input_names=['high', 'low', 'close', 'volume'],
    param_names=['anchor'],
    output_names=['vwap']
).with_apply_func(vwap_cum,
                takes_1d=True,
                param_settings=dict(
                    anchor=dict(template=RepFunc(substitute_anchor)),
                ),
                anchor="D",
                )

%timeit vwap_cum = vwap_ind.run(s12_data.high, s12_data.low, s12_data.close, s12_data.volume, anchor="min")
vbt.IF.register_custom_indicator(vwap_ind)

Use ttols indicators

from ttools.vbtindicators import register_custom_inds
register_custom_inds(if_exists="skip") #register all, skip or override when exists
#register_custom_inds("CVWAP", "skip") #register one, skip if exists
#register_custom_inds() #deregister all
vbt.IF.list_indicators("ttools")

vwap_cum = vbt.indicator("ttools:CUVWAP").run(s12_data.high, s12_data.low, s12_data.close, s12_data.volume, anchor="D")
vwap_cum.vwap

div_vwap_cum = vbt.indicator("ttools:DIVERGENCE").run(s12_data.close, vwap_cum_d.vwap, divtype=vbt.Default(valeu="reln"), hide_default=True) #hide default levels

FAV INDICATORS

#for TALIB indicator always use skipna=True

#TALIB INDICATORS can do realing closing : timeframe=["1T"]
mom_multi = vbt.indicator("talib:MOM").run(t1data.close, timeperiod=5, timeframe=["1T","5T"], skipna=True) #returned 5T can be directly compared with 1T

#ANCHORED indciators vbt.indicator("talib:MOM") becomes AnchoredIndicator("talib:MOM", anchor="D") - freq of pd.Grouper
from ttools import AnchoredIndicator
mom_anch_d = AnchoredIndicator("talib:MOM", anchor='30min').run(t1data.data["BAC"].close, timeperiod=10)
mom = vbt.indicator("talib:MOM").run(t1data.data["BAC"].close, timeperiod=10, skipna=True)
t1data.ohlcv.data["BAC"].lw.plot(auto_scale=[mom_anch_d, mom])

#FIBO RETRACEMENT
fibo = vbt.indicator("technical:FIBONACCI_RETRACEMENTS").run(t1data.close, skipna=True)
#fibo.fibonacci_retracements

fibo_plusclose = t1data.close + fibo.fibonacci_retracements
fibo_minusclose = t1data.close - fibo.fibonacci_retracements
#fibo_plusclose
Panel(
            auto_scale=[fibo_plusclose["BAC"]],
            ohlcv=(t1data.ohlcv.data["BAC"],),
            histogram=[],
            right=[(fibo_plusclose["BAC"],),(fibo_minusclose["BAC"],)],
            left=[],
            middle1=[(fibo.fibonacci_retracements["BAC"],"fibonacci_retracements")],
            middle2=[]
            ).chart(size="xs")

#CHOPINESS indicator
chopiness = vbt.indicator("technical:CHOPINESS").run(s1data.open, s1data.high, s1data.low, s1data.close, t1data.volume, skipna=True)
s1data.ohlcv.data["BAC"].lw.plot(auto_scale=[chopiness])

#anchored VWAP
t1vwap_h = vbt.VWAP.run(t1data.high, t1data.low, t1data.close, t1data.volume, anchor="H")
t1vwap_h_real = t1vwap_h.vwap.vbt.realign_closing(resampler_s)

#BBANDS = vbt.indicator("pandas_ta:BBANDS")
mom_anch_d = AnchoredIndicator("talib:MOM", anchor='30min').run(t1data.data["BAC"].close, timeperiod=10)
mom = vbt.indicator("talib:MOM").run(t1data.data["BAC"].close, timeperiod=10, skipna=True)
#macd = vbt.indicator("talib:MACD").run(t1data.data["BAC"].close) #, timeframe=["1T"]) #,
t1data.ohlcv.data["BAC"].lw.plot(auto_scale=[mom_anch_d, mom])

GROUPING

Group wrapper index based on freq:

#returns array of number of elements in each consec group
group_lens = s12_data.wrapper.get_index_grouper("D").get_group_lens()
#
group_end_idxs = np.cumsum(group_lens) #end indices of each group
group_start_idxs = group_end_idxs - group_lens #start indices of each group

out = np.full(volume.shape, np.nan, dtype=np.float_)

#iterate over groups
for group in range(len(group_lens)):
    from_i = group_start_idxs[group]
    to_i = group_end_idxs[group]

    #iterate over elements of the group
    for i in range(from_i, to_i):
        out[i] = np.nan
return out

SPLITTING

#SPLITTER - splitting wrapper based on index
#http://5.161.179.223:8000/vbt-doc/tutorials/cross-validation/splitter/index.html#anchored
#based on GROUPER
daily_splitter = vbt.Splitter.from_grouper(t1data.index, "D", split=None) #DOES contain last DAY

daily_splitter = vbt.Splitter.from_ranges( #doesnt contain last DY
    t1data.index,
    every="D",
    split=None
)
daily_splitter.stats()
daily_splitter.plot()
daily_splitter.coverage()
daily_splitter.get_bounds(index_bounds=True) #shows the exact times
daily_splitter.get_bounds_arr()
daily_splitter.get_range_coverage(relative=True)

#TAKING and APPLY MANUALLY - run UDF on ALL takes and concatenates
taken = daily_splitter.take(t1data)
inds = []
for series in taken:
    mom = vbt.indicator("talib:MOM").run(series.close, timeperiod=10, skipna=True)
    inds.append(mom)
mom_daily = vbt.base.merging.row_stack_merge(inds) #merge
mom = vbt.indicator("talib:MOM").run(t1data.close, timeperiod=10, skipna=True)
t1data.ohlcv.data["BAC"].lw.plot(left=[(mom_daily, "daily_splitter"),(mom, "original mom")]) #OHLCV with indicators on top

#TAKING and APPLY AUTOMATIC
daily_splitter = vbt.Splitter.from_grouper(t1data.index, "D", split=None) #DOES contain last DAY
def indi_run(sr):
    return vbt.indicator("talib:MOM").run(sr.close, timeperiod=10, skipna=True)

res = daily_splitter.apply(indi_run, vbt.Takeable(t1data), merge_func="row_stack", freq="1T")


#use of IDX accessor (docs:http://5.161.179.223:8000/vbt-doc/api/base/accessors/index.html#vectorbtpro.base.accessors.BaseIDXAccessor)
daily_grouper = t1data.index.vbt.get_grouper("D")

#grouper instance can be iterated over
for name, indices in daily_grouper.iter_groups():
    print(name, indices)

#PANDAS GROUPING - series/df grouping resulting in GroupBySeries placeholder that can be aggregated(sum, mean), transformed iterated over or fitlered
for name, group in t1data.data["BAC"].close.groupby(pd.Grouper(freq='D')):
    print(name, group)

CHARTING

Using custom lightweight-charts-python

#LW df/sr accessor
t1data.ohlcv.data["BAC"].lw.plot(left=[(mom_multi, "mom_multi")]) #OHLCV with indicators on top


t5data.ohlcv.data["BAC"].lw.plot(
    left=[(mom_multi.real, "mom"),(mom_multi_beztf, "mom_beztf"), (mom_5t_orig, "mom_5t_orig"), (mom_5t_orig_realigned, "mom_5t_orig_realigned")],
    right=[(t1data.data["BAC"].close, "t1 close"),(t5data.data["BAC"].close, "t5 close")],
    size="s") #.loc[:,(20,"1T","BAC")]

#SINGLE PANEL
Panel(
            auto_scale=[cdlbreakaway],
            ohlcv=(t1data.ohlcv.data["BAC"],entries),
            histogram=[],
            right=[],
            left=[],
            middle1=[],
            middle2=[]
            ).chart(size="xs")

#MULTI PANEL
pane1 = Panel(
    #auto_scale=[mom_multi, mom_multi_1t],
    #ohlcv=(t1data.data["BAC"],),  #(series, entries, exits, other_markers)
    #histogram=[(order_imbalance_allvolume, "oivol")], # [(series, name, "rgba(53, 94, 59, 0.6)", opacity)]
    right=[(t1data.data["BAC"].close,"close 1T"),(t5data.data["BAC"].close,"close 5T"),(mom_multi_1t.close, "mom multi close")], # [(series, name, entries, exits, other_markers)]
    left=[(mom_multi, "mom_multi"), (mom_multi_1t, "mom_multi_1t")],
    #middle1=[],
    #middle2=[],
    #xloc="2024-02-12 09:30",
    precision=3
)
pane2 = Panel(....)

ch = chart([pane1, pane2], size="s")

standard vbt plot

#skip gaps automatically
vbt.settings.plotting.auto_rangebreaks = True
vbt.settings.set_theme("dark")

data.plot(symbol="SPY", yaxis=dict(type="log")).show()

#skip non-business hours and weekends
fig = df.vbt.plot()
fig.update_xaxes(
    rangebreaks=[
        dict(bounds=['sat', 'mon']),
        dict(bounds=[16, 9.5], pattern='hour'),

    ]
)

MULTIACCOUNT

Simultaneous LONG and short (hedging) In vbt position requires one column of data, so hedging is possible by using two columns representing the same asset but different directions, then stack both portfolio together column stacking pf_join = vbt.PF.column_stack((pf1, pf2), group_by=True)

CUSTOM SIMULATION

ANALYSIS

ROBUSTNESS

pf_stats.sort_values(by='Sharpe Ratio', ascending=False).iloc[::-1].vbt.heatmap().show() #works when there are more metrics

#endregion

UTILS

#use plotly resampler
vbt.settings.plotting["use_resampler"] = True

#RELOAD module in ipynb
%load_ext autoreload
%autoreload 2

#MEMORY
sr.info()


#peak memory usage, running once
with vbt.MemTracer() as tracer:
    my_pipeline()

print(tracer.peak_usage())

#CACHE
vbt.print_cache_stats()
vbt.print_cache_stats(vbt.PF)

vbt.flush() #clear cache and collect garbage
vbt.clear_cache(pf) #of specific
vbt.clear_pycache()


#TIMING
#running once
with vbt.Timer() as timer:
    my_pipeline()

print(timer.elapsed())

#multiple times
print(vbt.timeit(my_pipeline))

#in notebook
%timeit function(x)
%% time
function(x)

#NUMBA
#numba doesnt return error when indexing out of bound, this raises the error
import os
os.environ["NUMBA_BOUNDSCHECK"] = "1"

Market calendar

from pandas.tseries.offsets import CustomBusinessDay
from pandas_market_calendars import get_calendar

# Get the NYSE trading calendar
nyse = get_calendar('NYSE')
# Create a CustomBusinessDay object using the NYSE trading calendar
custom_bd = CustomBusinessDay(holidays=nyse.holidays().holidays, weekmask=nyse.weekmask, calendar=nyse)
